  4. 3D Series S-F9

3D Series S-F9

3D Series S-F9
Send Message

Platform Choice:
1. Scissor lift(recommend): The ideal platform for 3D alignment, the length is more than 4000mm;
2. Four post lift: require the distance between the left and right posts is more than 2700mm.
Products Advantages of 3D Series S-F9:
Automatic tracking beam, technician can make measurement and adjustment on different of lifting levels.
6.4MP high accuracy camera with 32〞LED TV and 19″ LCD display, fully shows glamour of 3D technology.
Self-developed ultimate 3D software, showing honour of high-level customer.
Adopt exclusive height target plate and software, precise measurement of vehicle body height.

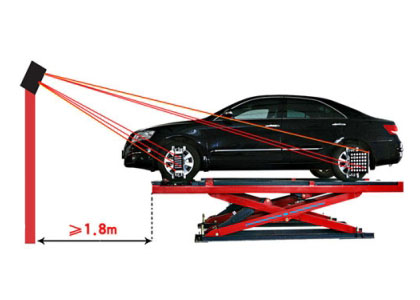

Camera Automatic Tracking:

Precise measurement of vehicle body height
Suitable for checking plenty of vehicle models.

Standard Configuration of 3D Series S-F9:

Deluxe cabinet, Electric movable post, DELL computer, Mini Target plates, Three-fingers clamp, Brake fixer, Steering wheel fixer, Wedge pads, Aluminum alloy turntables, Turntable transition blocks, Exclusive height target plate.
Parameters measurement such as camber, Caster, Kingpin inclination, Toe-in & Toe-out, Set back, Thrust angle.

Extension Functions of 3D Series S-F9:

Removing Tire Adjustment(Purchasing Rim adapter),
Body Dimension Measurement,
Steering Wheel Adjustment,
Engine Bay Adjustment,
Toe Curvature Measurement(Purchasing B5 Tool Kits),
Lock Toe Adjustment,
Camber Measurement of Zero Toe,
Scrub Radius Measurement, Rolling Radius Measurement,
Body Height Measurement

Specifications of 3D Series S-F9:

Measurement Item

Display Accuracy

Camber

Caster

Kingpin Incination

Toe-in&Toe-out

Set Back

Thrust Angle

Wheel Deviation

Axis Deviation

Accuracy

1′/0.01°/0.1mm

±2′

±6′

±6′

±2′

±2′

±2′

±2mm

±2mm

Measurement Range



±10°

±20°

±23°

±20°

±5°

±5°
