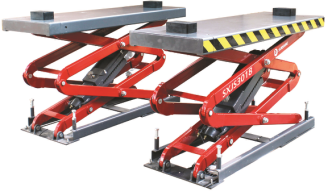

Small Scissor Lift SXJS-3018

Small Scissor Lift
Send Message

Features:
1. Rigidity, no deformation, good synchronization performance, high precision synchronization.
2. Underground installation, the overall height is 340mm, save space, beautiful and easy.
3. Imported hydraulic seals, the whole system is reliable;Hydraulic and mechanical safety device, Safe and reliable.
4. Platform is adjustable, standard configuration is single side extended(Maximum length 1760mm), Model SXJS3018D is double sides extended (Maximum length 1980mm).
5. Lifting height up to 1800mm, suitable for more higher persons operation.
6. When the lift falls down, buzzer will alarm to ensure the safety of personal.
7. Limit switch can keep equipment long-term security and stability, prolong the service lift.
8. The overall design is very suitable for dismounting tires,chassis repair, oil change and fast repair maintenance, preflight.

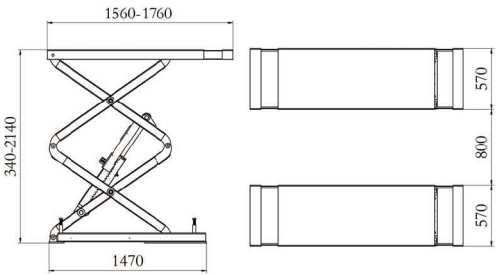

Drawing of 3018 Small Scissor Lift

Ultra-thin Alignment scissor lift

Specificatios:

Type

Lifting
capacity

Lifting
height

System
pressure

Pressure
pneumatic

Motor
power

Voltage

N.W

MIN.
Height

Platform
Length

SXJS-3018

3.0T

340+1800mm

25Mpa

0.4-0.8Mpa

3KW

380/220V

0.80T

340mm

1560-1760mm

6614LB

13+71inch

1700LB

13inch

61-70inch

SXJS-3018D

3.0T

340+1800mm

25Mpa

0.4-0.8Mpa

3KW

380/220V

0.77T

340mm

1660-2060mm

6614LB

13+71inch

1764LB

13inch

65-81inch

SXJS-3518

3.5T

340+1800mm

25Mpa

0.4-0.8Mpa

3KW

380/220V

0.77T

340mm

1560-1760mm

7716LB

13+71inch

1700LB

13inch

61-70inch

SXJS-3518D

3.5T

340+1800mm

25Mpa

0.4-0.8Mpa

3KW

380/220V

0.77T

340mm

1660-2060mm

7716LB

13+71inch

1764LB

13inch

65-81inch
