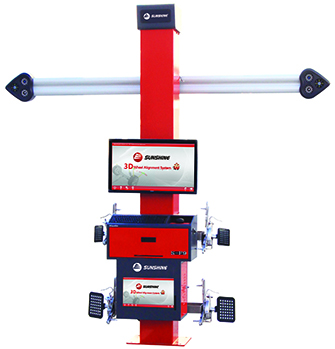

3D Series S-F9

Products Advantages
Automatic tracking beam, technician can make measurement and adjustment on different of lifting levels. 6.4MP high accuracy camera 32〞LED TV display, fully shows glamour of 3D technology. Self-developed ultimate 3D software, showing honour of high-level customer.
Adopt exclusive height target plate and software, precise measurement of vehicle body height. Data can be inputted to computer automatically or manually.

Camera Automatic Tracking
Precise meaurements of vehicle body height
Suitable for checking plenty of vehicle models.

Standard Configuration
Deluxe cabinet, Electric movable post, DELL computer (Liquid Crystal Display), High quality printer, Target plates, Clamp, Brake fixer, Steering wheel fixer, Wedge pads, Turntables, Turntable transition blocks, Exclusive height target plate.
Parameters measurement such as camber, Caster, Kingpin inclination, Toe-in & Toe-out, Set back, Thrust angle.

Extension Functions
Steering Wheel Aligning, Vehicle body Measurement Vehicle Lift Measurement, Engine Bracket Adjustment, Toe-In Lockup Measurement
Toe-In Curvature Measurement
Single Wheel Measurement
Inspection of Lifting Height Level
Axis Deviation Measurement
Wheel Deviation Measurement
Zero Toe-in Camber Measurement
Axis Distance Measurement, Scrub Radius Measurement, Wheel Distance Measurement

Automatic Tracking Beams
