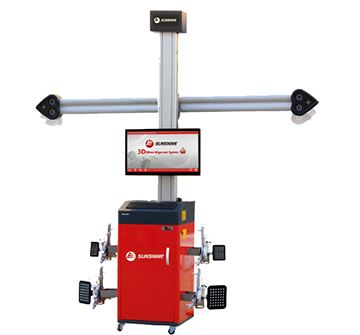

3D Series S-F8

Products Advantages
Automatic tracking beam, technician can make measurement and adjustment on different of lifting levels. 6.4MP high accuracy camera. 32" LED TV display, fully shows glamour of 3D technology. Self-developed ultimate 3D software, showing honour of high-level customer.
Adopt exclusive height target plate and software, precise measurement of vehicle body height. Data can be inputted to computer automatically or manually.

Standard Configuration
Deluxe cabinet, Electric movable post, DELL computer (Liquid Crystal Display), High quality printer, Target plates, clamp, Brake fixer, Steering wheel fixer, Wedge pads, Turntables, Turntable transition blocks, Exclusive height target plate.

Basic Functions
PParameters measurement such as camber, Caster, Kingpin inclination, Toe-in & Toe-out, Set back, Thrust angle.

Extensive Function
Steering Wheel Aligning, Vehicle body Measurement Vehicle Lift Measurement.
Axis Deviation Measurement, Wheel Deviation Measurement.
Engine Bracket Adjustment, Toe-In Lockup Measurement.
Toe-In Curvature Measurement.
Single Wheel Measurement.
Inspection of Lifting Height Level.
Axis Deviation Measurement.br /> Wheel Deviation Measurement.
Zero Toe-in Camber Measurement.
Axis Distance Measurement, Scrub Radius Measurement, Wheel Distance.
Measurement.

Automatic tracking beams
